Attachments
Patented snap mechanism to provide patients with secure prosthesis retention. Replace old Bredent VKS-SG females with Preat Sagix females to increase retention.

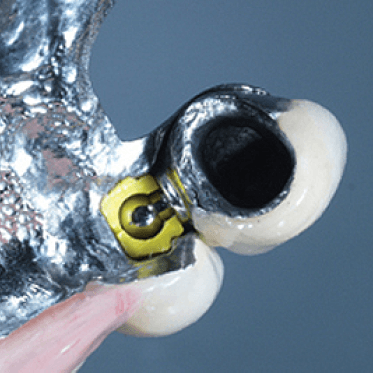

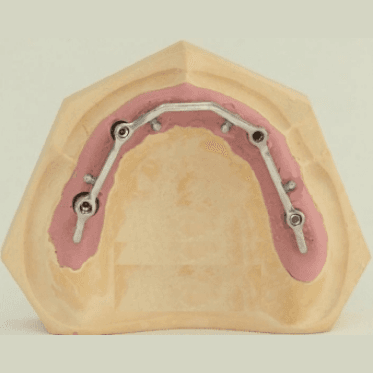

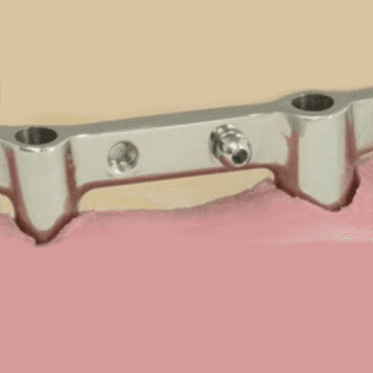

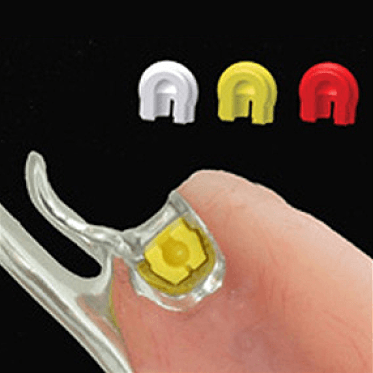

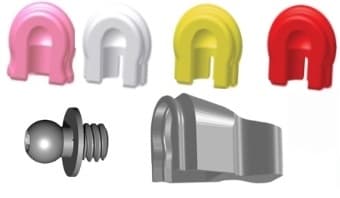

Sagital ball attachment with segmented female for partial dentures and implant bar applications. The replaceable plastic female in three retention levels is incorporated directly into the framework. The male is available in plastic and cast in a hard alloy, in pre-fabricated metal and cast-to with any alloy, or also as a threaded male with a special cast-on base ring.
Preat recommends the cast-to pre-machined metal male. This prefabricated male assures a smooth, consistently sized sphere for maximum accuracy and precision on every case. Consistent, accurate, and reliable.

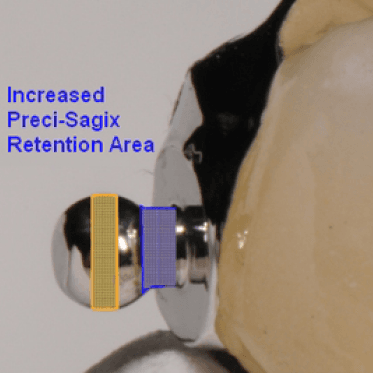

The “clipsing”, or flexing of the rigid female around the height of countour of the sphere allows the female 35% more retention area contact than previous designs of a sagital spherical attachment. Many users who switch out older VKS-style attachments find that the least retentive Sagix female, the white, provides excellent retention, due to the increased surface area of contact between the female and the male attachments.
- Sagix is available in two ball sizes: Mini 1.7 mm and Standard 2.2 mm.
- Space Requirements for each ball size are:
Kits for the Sagix Attachment System
Sagix intro kit p #1301
Introduction kit with castable plastic males, the necessary tools and females in three different retention levels for Mini size 1.7 and Standard size 2.2. Cast the males in any hard dental alloy.
22-piece kit:
- 2 + 2 castable plastic males
- 2 + 2 yellow females (normal retention)
- 2 + 2 white females (reduced retention)
- 2 + 2 red females (increased retention)
- 2 + 2 duplicating dummies/processing females
- 1 universal paralleling mandrel
- 1 universal insertion tool
Sagix intro kit m #1303
Introduction kit with cast-on NOPRAX males, the necessary tools and females in three different retention levels for Mini size 1.7 and Standard size 2.2. Cast-on technique for all dental alloys.
22-piece kit:
- 2 + 2 cast-on NOPRAX males
- 2 + 2 yellow females (normal retention)
- 2 + 2 white females (reduced retention)
- 2 + 2 red females (increased retention)
- 2 + 2 duplicating dummies/processing females
- 1 universal paralleling mandrel
- 1 universal insertion tool
Sagix Complete Attachment Sets
SAGIX Complete P
Complete attachment with one castable plastic male, one each yellow, white and red females, and one duplicating/processing pink female. Cast the males in any hard dental alloy.
Includes:
(1) castable plastic male
(1) white female (reduced retention)
(1) yellow female (normal retention)
(1) red female (increased retention)
(1) duplicating / processing female
SAGIX Complete P with Housing
Complete attachment with one castable plastic male, one each yellow, white and red females, one duplicating/processing pink female, and one metal housing. Cast the males in any hard dental alloy.
Includes:
(1) castable plastic male
(1) white female (reduced retention)
(1) yellow female (normal retention)
(1) red female (increased retention)
(1) duplicating / processing female
(1) co/cr metal housing
SAGIX Complete M
Complete attachment with one cast-on NOPRAX male, one each yellow, white and red females, and one duplicating/processing pink female. Cast-on technique for all dental alloys.
Includes:
(1) cast-on NOPRAX male
(1) white female (reduced retention)
(1) yellow female (normal retention)
(1) red female (increased retention)
(1) duplicating / processing female
SAGIX Complete M with Housing
Complete attachment with one cast-on NOPRAX male, one each yellow, white and red females, one duplicating/processing pink female, and one metal housing.
Cast-on technique for all dental alloys.
Includes:
(1) cast-on NOPRAX male
(1) cast-on NOPRAX male
(1) white female (reduced retention)
(1) yellow female (normal retention)
(1) red female (increased retention)
(1) duplicating / processing female
(1) co/cr metal housing
SAGIX Complete T
Complete attachment with one threaded NOPRAX male, one each yellow, white and red females, and one duplicating/processing pink female.
Ideal for CAD/CAM bars or all dental alloys.
Includes:
(1) threaded NOPRAX male
(1) white female (reduced retention)
(1) yellow female (normal retention)
(1) red female (increased retention)
(1) duplicating / processing female
SAGIX Complete T with Housing
Complete attachment with one threaded NOPRAX male, one each yellow, white and red females, one duplicating/processing pink female, and one metal housing.
Ideal for CAD CAM bars or all dental alloys.
Includes:
(1) threaded NOPRAX male
(1) white female (reduced retention)
(1) yellow female (normal retention)
(1) red female (increased retention)
(1) duplicating / processing female
(1) co/cr metal housing
